NanoMake Pro by OIMake

A Credit Card Size All-in-one Arduino Nano Maker board designed to learn/teach electronics, embedded systems, sensors, displays, motors and wireless control - without breadboards or messy wiring.

What can you build with this ?

• Traffic light system
• Smart Parking System
• Automatic street light (LDR)
• RGB mood lamp (WS2812)
• Height Measuring Device
• Bluetooth controlled robot car
• Servo-based door lock
• OLED sensor dashboard
• IR remote control devices
• Motor speed control using potentiometer
• Reaction time game using buttons & buzzer
• Data logger using I²C sensors
• And many more……

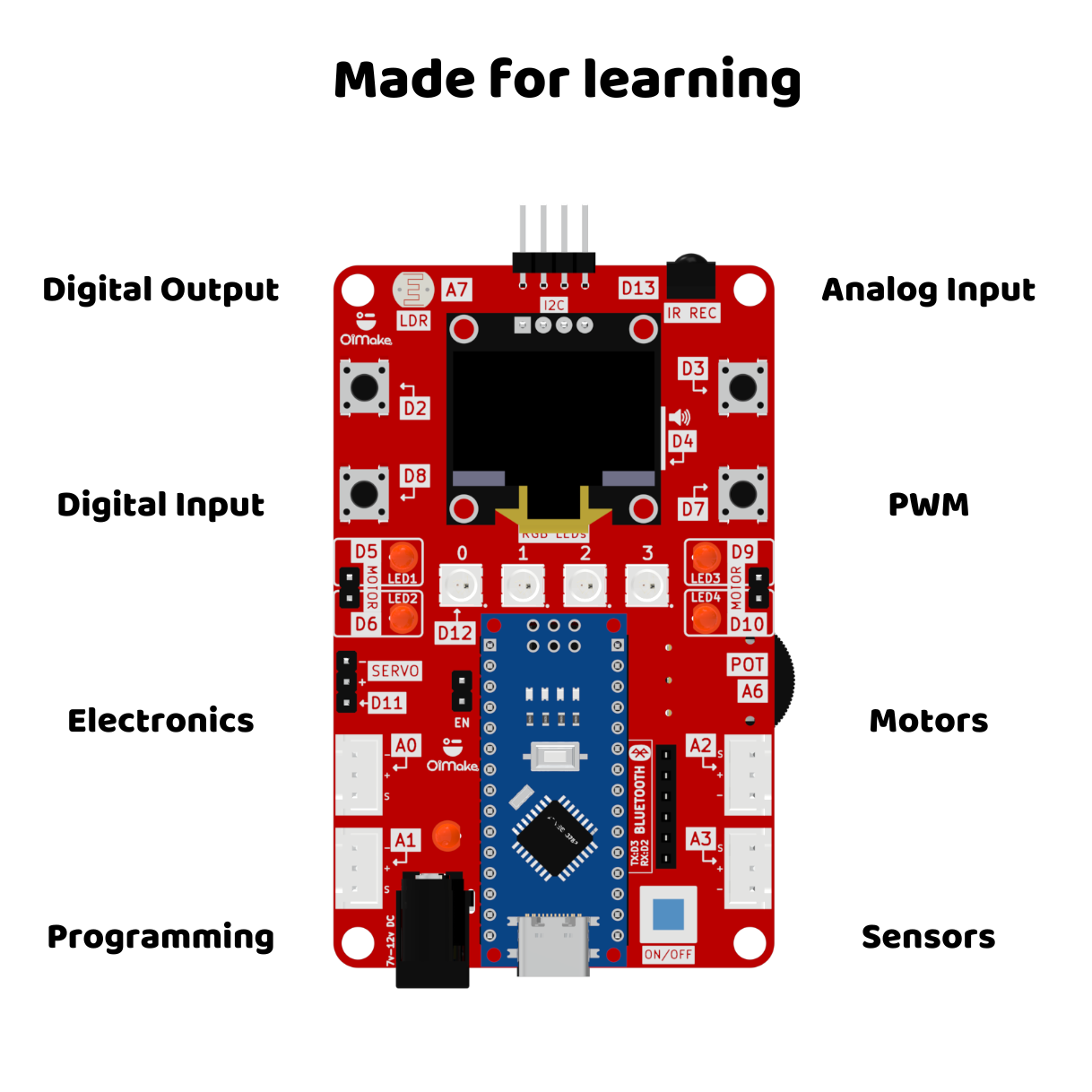

Who is it for ?

• Beginners in Arduino & electronics
• School students
• Diploma / Engineering first-year students
• Hobbyists & makers from age 9 - 99
• Robotics beginners

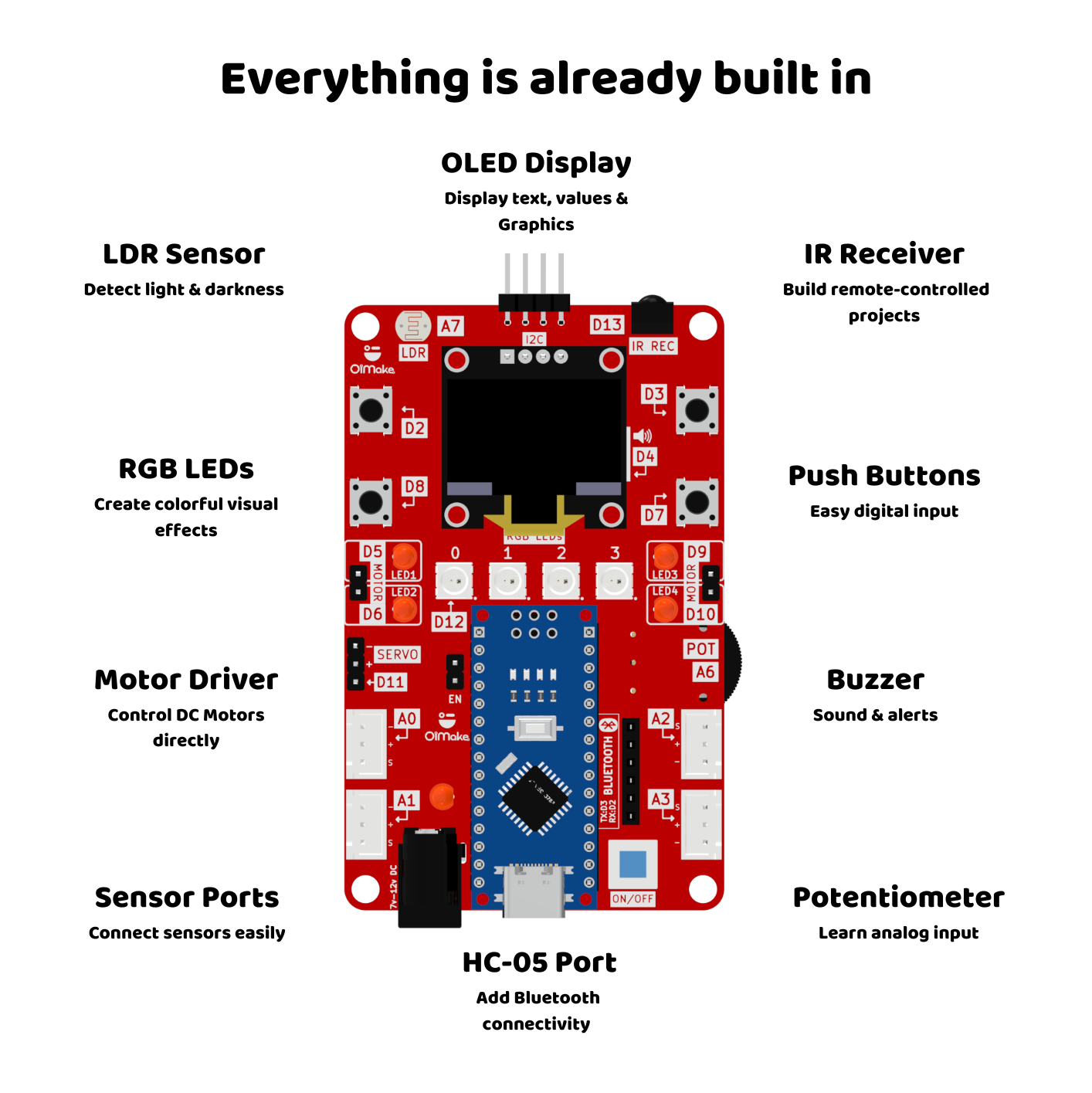

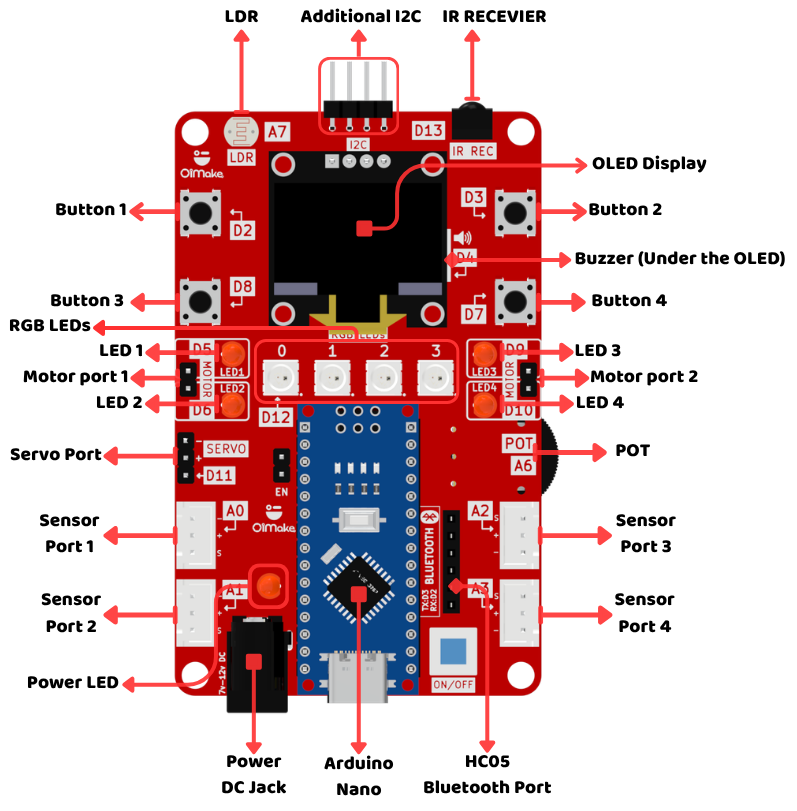

Onboard Components:

Processing Unit

• Arduino Nano (ATmega328P, 16 MHz, 5 V logic)

Power Options

• USB Type C power from Arduino Nano
• DC barrel jack input: 7 V to 12 V

Output Devices

• 4 x LEDs (mapped to motor driver outputs)
• 4 x WS2812b RGB LEDs
• 2 x DC motor control via onboard motor driver
• 1 x Servo Motor
• 1 x Buzzer (digital output)
• 1 x OLED Display (I²C based)

Input Devices

• 4 x Tactile Push Buttons
• 1 x Potentiometer (Analog input)
• 1 x LDR (Light-dependent resistor)
• 1 x IR Receiver (TSOP1838 – modulated IR)

Expansion / Sensor Ports

• 4 × Analog sensor ports (A1–A4) -  direct plugged & play.
• 1 x HC05 Bluetooth Module Port
• 1 x Additional I²C expansion port

Why this board instead of plain Arduino Nano?

• No loose wires, no breadboard confusion
• Every core component pre-wired and ready
• Structured path from basics → real embedded projects
• Ideal for classrooms, labs, and projects, competitions
• Doubles as a robotics control board

Programming Platform

• Block-based programming supported via steamakersblocks /Scratch-style environment
• Text-based programming using Arduino IDE (C/C++ Arduino framework)
